At a Glance:
- Fiber optic patch cable for high-speed data connections
- Backward compatible with existing network equipment
- Two LC and two ST connectors for rapid deployment
- Multimode optical fiber to transmit data over short distances
- Multimode Optical Fiber
- LC Duplex Male Connectors
- ST Duplex Male Connectors

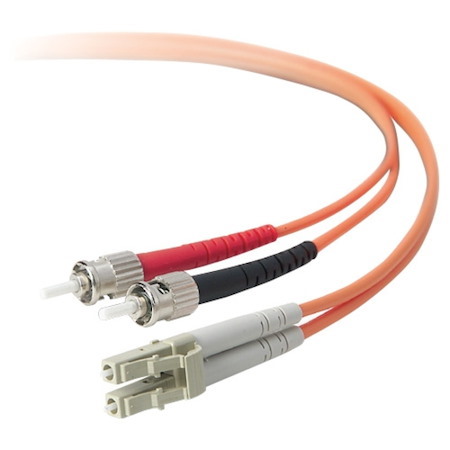

This fiber optic cable features two LC multimode male connectors on one end and two ST multimode male connectors on the other end for fast setup. LC connectors conserve space to accommodate multiple cables.
TRANSMIT DATA WITH EASEEstablish high-speed data connections within your local area network using the Belkin Multimode 50/125 LC/ST Fiber Optic Patch Cable. Designed for use in Ethernet network applications, multimode patch cable is backward compatible with existing network equipment and offers three times the bandwidth of traditional 62.5/125 multimode fibers.
MULTIMODE FIBER FOR BACKBONE APPLICATIONSIdeal as part of a backbone network, this fiber patch cable uses laser-optimized fiber that has a larger diameter and greater light-gathering capacity than a single-mode fiber. With a core diameter of 50 microns and a cladding diameter of 125 microns, this fiber is better suited for transmitting data over short distances, such as within an office building.
MEETS INDUSTRY REQUIREMENTSThe Belkin Multimode 50/125 LC/ST Fiber Optic Patch Cable is classified as an OM2 multimode optical fiber cable under ISO/IEC (International Organization for Standardization/International Electrotechnical Commission) standard 11801.
Package Includes:- Multimode 50/125 LC/ST Fiber Optic Patch Cable OM2
- General Information
- Manufacturer
- Belkin International, Inc
- Manufacturer Website Address
- http://www.belkin.com
- Brand Name
- Belkin
- Packaged Quantity
- 1
- Product Type
- Network Cable
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- Fiber Optic
- Cable Characteristic
- Patch Cable
- Fiber Optic Mode
- Multi-mode
- Fiber Type
- Duplex
- Core/Cladding Diameter
- 50/125 µm
- Cable Length
- 9.84 ft
- Connector Type on First End
- LC/PC Network - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 2 x LC/PC Network - Male
- Connector Type on Second End
- ST Network - Male
- Connector Gender on Second End
- Male
- Connector on Second End Details
- 2 x ST Network - Male
- Jacket Type
- OFNR
- Riser
- Device Supported
- Network Device
- Physical Characteristics
- Jacket Material
- Polyvinyl Chloride (PVC)
- Weight (Approximate)
- 0.10 lb
- Miscellaneous
- Certifications & Standards
- FDDI
- OFNR (Riser Rated)
