- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- M30
- Product Type
- Network Camera
6 MP outdoor-ready with 360° panoramic view and audio capture:

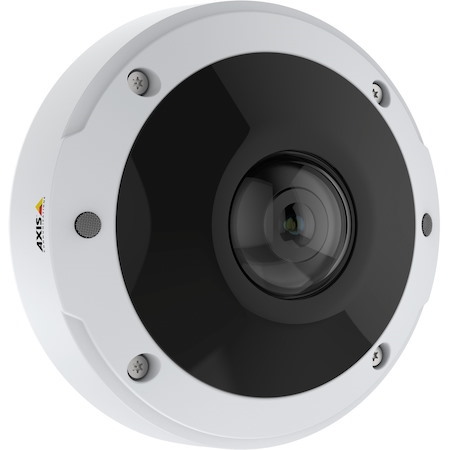

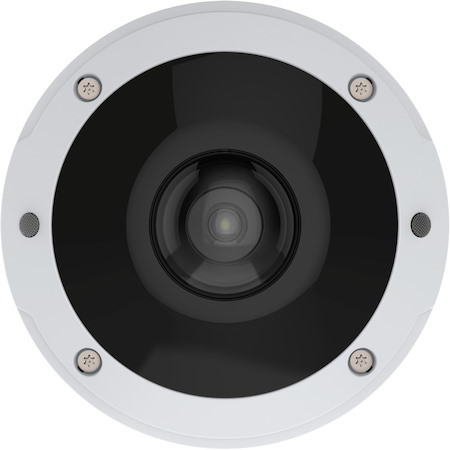

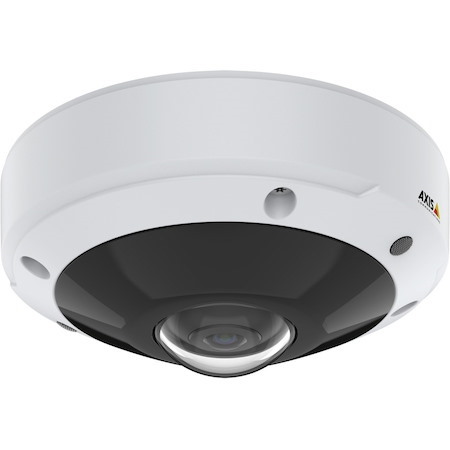

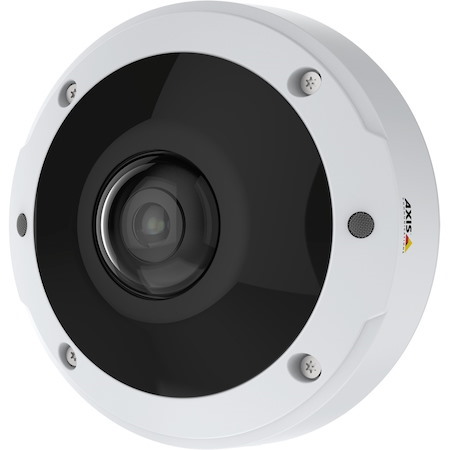

With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 65.62 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- RGB CMOS
- Color Supported
- Color
- Field of View
- Horizontal field of view: 183° Vertical field of view: 183°
- Effective Camera Resolution
- 6 Megapixel
- Video
- Video Formats
- H.264 (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- H.264
- H.265
- MJPEG
- Maximum Video Resolution
- 2560 x 1920
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 1.56 mm
- Lens Included
- Yes
- Maximum Aperture
- f/2
- Exposure
- Shortest Shutter Speed
- 1/16000 Second
- Longest Shutter Speed
- 1 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Power Source Type
- PoE
- Physical Characteristics
- Mount Type
- Pendant Mount
- Conduit Mount
- Ceiling Mount
- Pole Mount
- Wall Mount
- Corner Mount
- Lighting Track Mount
- Parapet Mount
- Form Factor
- Dome
- Color Family
- White
- Product Color
- White
- Height
- 2.6"
- Diameter
- 5.9"
- Weight (Approximate)
- 1.54 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Maximum Operating Humidity
- 100%
- Miscellaneous
- Features
- Built-in IR LED
- Removable IR Cut-off Filter
- Day/Night
- Motion Detection
- Tampering Alarm
- SD Card Local Storage
- Multi-view Stream
- Automatic White Balance
- Auto Gain Control
- Privacy Masking
- Video Management System
- PTZ
- Wide Dynamic Range
- Built-in Microphone
- Audio Detection
- Noise Reduction
- Indoor/Outdoor
- Outdoor
- Package Contents
- M3077-PLVE Network Camera
- Installation Guide
- Windows Decoder 1-user license
- Drill Hole Template
- Cable Gaskets
- Connector Guard
- I/O Connector
- RESISTORX TR20 bit
- Mounting Bracket
- Cable Hole Lid
- View Protector
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- Country of Origin
- Thailand
- NDAA Compliant
- Yes
