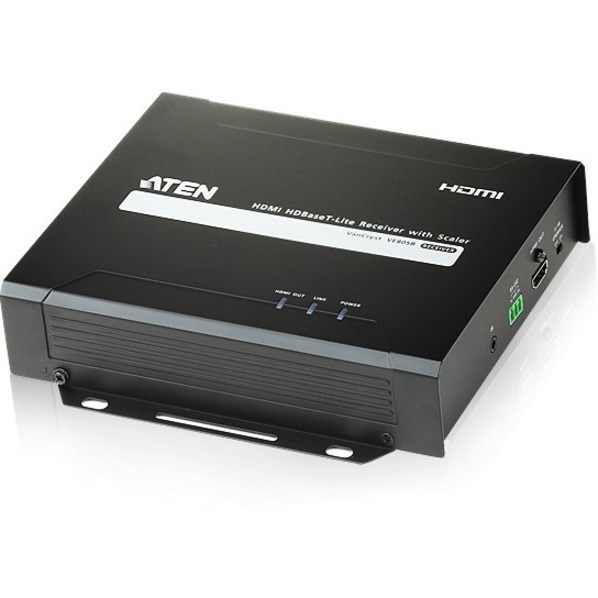

VE805R
HDMI HDBaseT-Lite Receiver with Scaler(HDBaseT Class B)
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Type
- Video Extender Transmitter/Receiver
- Technical Information
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 196.85 ft
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI Out
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6a
- Physical Characteristics
- Transmitter Height
- 1.70"
- Transmitter Width
- 6.70"
- Transmitter Depth
- 7.20"
- Form Factor
- Rack-mountable
- Transmitter Weight (Approximate)
- 1.85 lb
- Miscellaneous
- Package Contents
- VE805R HDMI HDBaseT-Lite Receiver with Scaler
- 1 x Power Adapter
- 1 x IR Transmitter
- 1 x IR Receiver
- 1 x Terminal Block
- 1 x User Instructions
- Environmentally Friendly
- Yes
