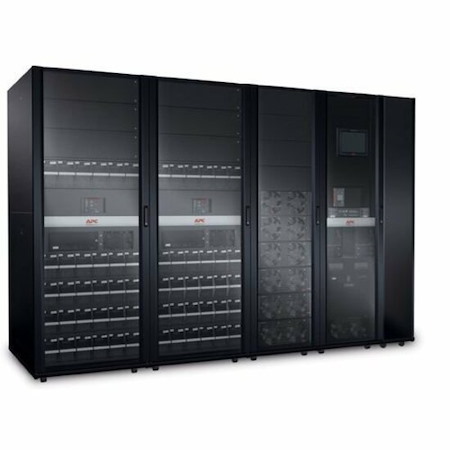

Scalable, high-efficiency 3-phase UPS with integrated maintenance bypass & sub-feed distribution. This system scales as your data center grows up to 250kW/250kVA. To support additional growth, this UPS can be easily expanded to scale to 500kW and supports up to four systems in parallel. Suitable for medium & large data center applications.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Symmetra
- Product Series
- PX
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Plug/Connector Type
- Hard Wire 4-wire
- Hard Wire 5-wire
- Receptacle Type
- Hard Wire 4-wire
- Hard Wire 5-wire
- Receptacle Detail
- 1 x Hard Wire 4-wire
- 1 x Hard Wire 5-wire
- Power Description
- Load Capacity (VA)
- 500 kVA
- Input Voltage
- 220 V AC
- Output Voltage
- 480 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Maintenance
- Static
- Interfaces/Ports
- Modular Slots
- 36 x Battery
- 3 x SmartSlot
- Battery Information
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Half Load)
- 1.60 Minute
- Typical Battery Recharge Time
- 8 Hour
- Physical Characteristics
- Form Factor
- Tower
- Height
- 78.4"
- Width
- 10.2 ft
- Depth
- 42"
- Weight (Approximate)
- 7812 lb
- Miscellaneous
- Package Contents
- Symmetra PX 150kW Scalable to 250kW Tower UPS
- 60 x Battery Modules
- Installation guide
- User Manual
- Web/SNMP Management Card
- Additional Information
- Max Configurable Power: 500 kW / 500 kVA
- Input voltage range for main operations: 408 - 52 (480)V
- Energy Star
- Yes
- Environmentally Friendly
- Yes
