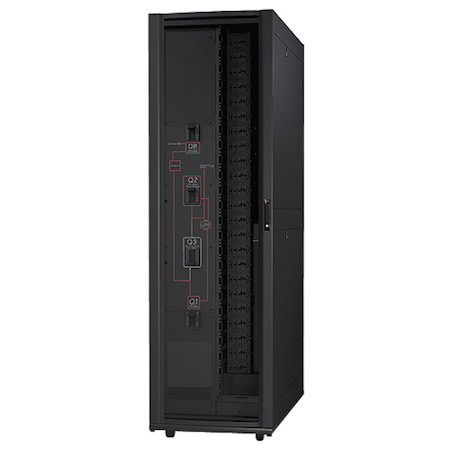

APC by Schneider Electric PDPM100F6F-M 1-Outlet 100kVA PDU

  • Part: 1257201
  • Model: PDPM100F6F-M
$31,071.00
FREE DELIVERY

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Schneider Electric SA
    • Manufacturer Website Address
    • http://www.schneider-electric.com
    • Brand Name
    • APC by Schneider Electric
    • Product Type
    • PDU

Modular Power Distribution mitigates the need to predict the future requirements and configurations of your data center. This visionary power distribution system is agile enough to match the needs of your data center today and enable rapid expansion or reconfiguration in the future. Power management is simplified by output metering, branch current/circuit monitoring and auto-detection by the InfraStruXure suite of management options. When demand rises and expansion becomes necessary, there is no need to schedule downtime to add a breaker, as modules (including circuit breaker, power cord, and power connection) simply plug into a touch-safe backplane. The factory-assembled modules can be installed in mere minutes. This eliminates the need for risky hot work and shields users from dangerous amperage. There are multiple power ratings and power cord lengths for low to high power, guaranteeing compatibility and quick, easy, and convenient installation.

  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Design
    • Modular
    • Plug/Connector Type
    • Hardwired
    • Receptacle Type
    • Hardwired
    • Receptacle Detail
    • 1 x Hardwired
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 230 V AC
    • Output Voltage
    • 120 V AC
    • 208 V AC
    • Power Rating (VA)
    • 100 kVA
  • Physical Characteristics
    • Form Factor
    • Tower
    • Height
    • 79"
    • Width
    • 23.6"
    • Depth
    • 42.1"
    • Weight (Approximate)
    • 1800 lb
  • Miscellaneous
    • Package Contents
      • PDPM100F6F-M 1-Outlet 100kVA PDU
      • Installation Guide
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
