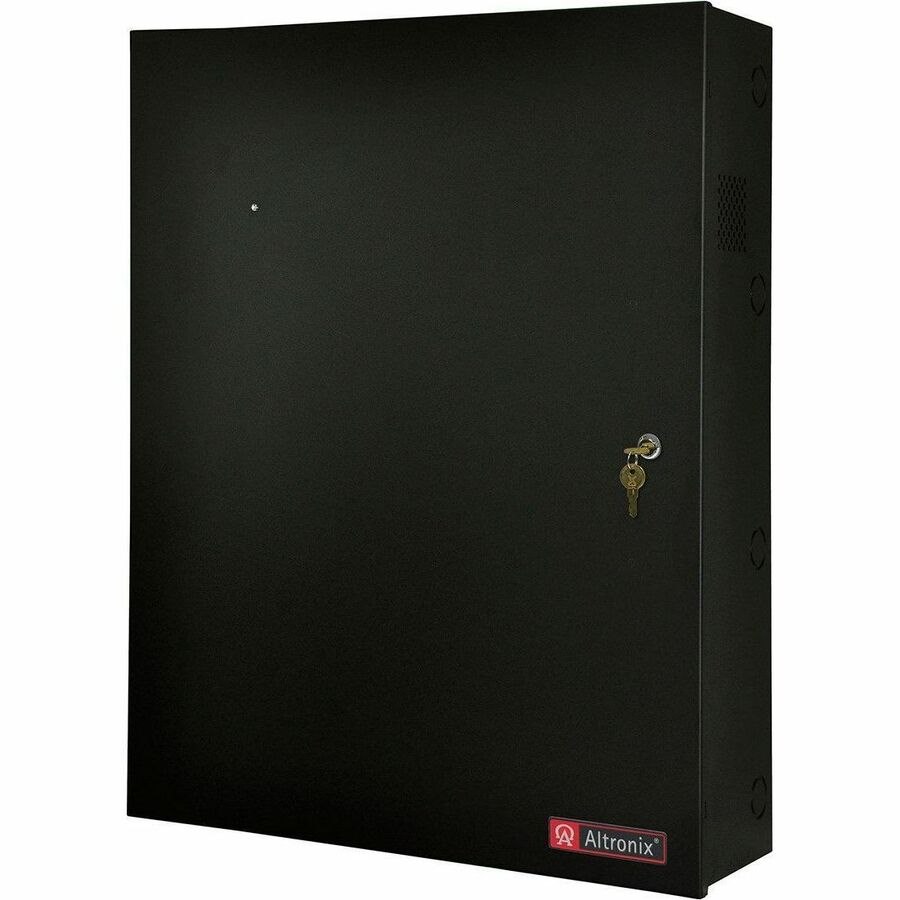

Altronix T3CVK7720D kit consists of Trove3 enclosure, TCV3 CDVI/Altronix backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 8-output PTC access power controllers, one (1) 4-output PTC access power controller and one (1) 8-output PTC power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Power Integration Kit
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Recommended Usage
- Door
- Battery Information
- Battery Included
- No
- Number of Batteries Supported
- 4
- Environmental Conditions
- Maximum Operating Temperature
- 120.2°F (49°C)
- Physical Characteristics
- Dimensions
Dimensions:
- 30.12"Wx36.12"Hx7.06"D(768.1 mm W x 917.5 mm H x 179.3 mm D).
- Weight (Approximate)
Product Weight:
- 85 Lbs.(38.6 kg).
- Miscellaneous
- Package Contents
- 1 x Access and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
- 1 x Trove3 Backplane for Altronix/CDVI
- 2 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- 2 x Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board
- 1 x Access Power Controller, 4 PTC Class 2 Relay Outputs, FAI, Board
- 1 x Power Distribution Module, 8 PTC Outputs up to 28VAC/VDC, Board
- 1 x Dual Power ON/OFF Rocker Switches with Mounting Bracket
- Environmentally Friendly
- Yes
