- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Access/Power Integration Kit

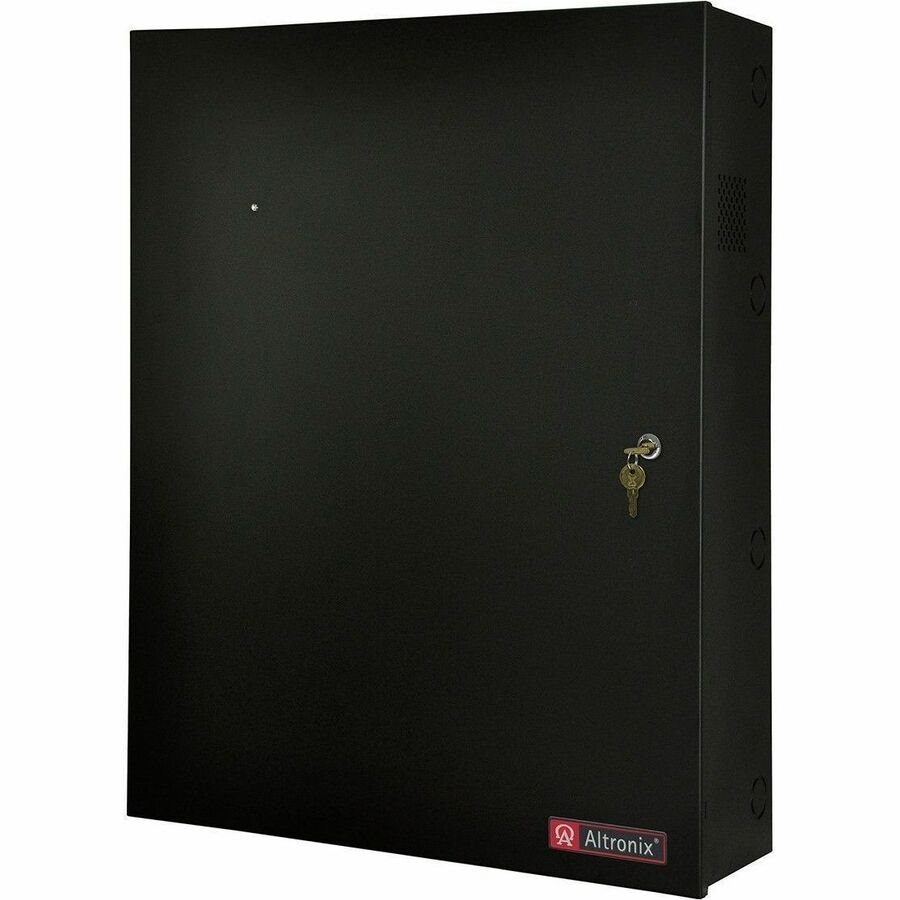

Altronix T3CVK7720 kit consists of Trove3 enclosure, TCV3 CDVI/Altronix backplane with two (2) 24VDC @ 10A power supply/chargers, two (2) 8-output fused access power controllers, one (1) 4-output fused access power controller and one (1) 8-output fused power distribution module. Also featured is a rocker switch bracket with two (2) rocker switches. This kit also accommodate various combinations of CDVI Atrium A22K/A22NB/ADH10 boards for up to twenty (20) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 115 V AC
- 24 V DC
- 12 V DC
- Physical Characteristics
- Dimensions
Enclosure 30.12"Wx36.12"Hx7.06"D
- Weight (Approximate)
Weight:85 Lbs.
- Miscellaneous
- Package Contents
- 1 xAccess and Power Integration Enclosure, Requires compatible Trove3 Series Backplane
- 1 x Trove3 Backplane for Altronix/CDVI
- 2 xPower Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- 2 x Access Power Controller, 8 Fused Relay Outputs, FAI, Board
- 1 x Access Power Controller, 4 Fused Relay Outputs, FAI, Board
- 1 x Power Distribution Module, 8 Fused Outputs up to 28VAC/VDC, Board
- 1 x Dual Power ON/OFF Rocker Switches with Mounting Bracket
- Environmentally Friendly
- Yes
