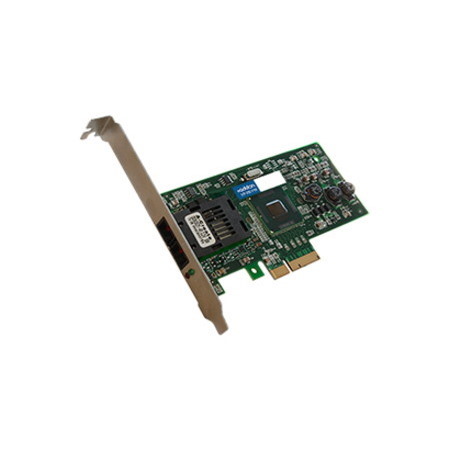

This is a Gigabit Ethernet PCIe 2.0 x1 network interface card with a single SC port that complies with IEEE 802.3 standards. It is based on an Intel 82574 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single SC port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
- General Information
- Manufacturer
- AddOn
- Manufacturer Website Address
- http://www.addoncomputer.com
- Brand Name
- AddOn
- Packaged Quantity
- 1
- Product Type
- Gigabit Ethernet Card
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Chipset Manufacturer
- Intel
- Chipset Model
- 82574
- Interfaces/Ports
- Host Interface
- PCI Express 2.0 x1
- Total Number of Ports
- 1
- Network (RJ-45)
- No
- USB
- No
- Serial Port
- No
- Ethernet AUI
- No
- XJACK
- No
- PoE (RJ-45) Port
- No
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Network & Communication
- Network Technology
- 1000Base-SX
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 5.2"
- Width
- 4.7"
- Thickness
- 880 mil
- Weight (Approximate)
- 1.60 oz
- Miscellaneous
- Package Contents
- 1Gbs Single SC Port 550m MMF PCIe 2.0 x1 Network Interface Card
- Half-height and full-height brackets
- Application/Usage
- Network
- Operating System Compatibility
- Windows XP x64
- Linux Kernel 2.4.x
- Linux Kernel 2.6.x
- Linux Kernel 3.x
- Netware 6.5
- Windows 2000 Advanced Server
- Windows 2000 Server
- Windows 7 x32
- Windows 7 x64
- Windows 8 x32
- Windows 8 x64
- Windows Server 2003 x32
- Windows Server 2003 x64
- Windows Server 2008 R2
- Windows Server 2008 x32
- Windows Server 2008 x64
- Windows Server 2012
- Windows Small Business Server 2006
- Windows Vista x32
- Windows Vista x64
- Windows XP
- Windows XP Professional
- Windows XP Professional x64
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- China
